Clean Rooms - Partitions
Various executions of partitions for every application

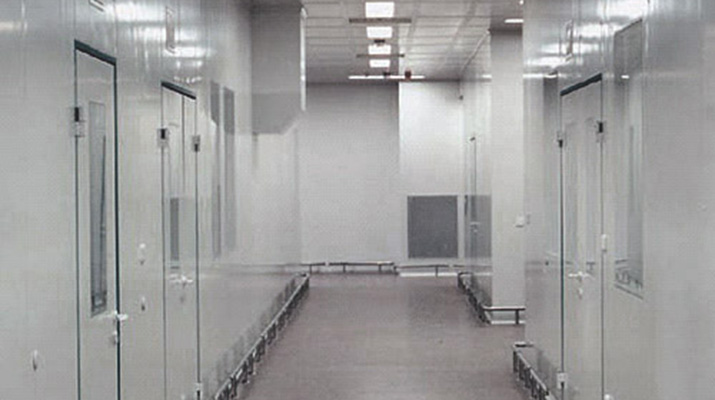

Wall panels are used to create self-contained clean rooms with a defined cleanliness class.
- Four types of wall panels for different applications
- Lacquered or stainless steel sheet faces, custom design colours, various cores.
- Matching flush glazed glass panels (non-opening windows) for each panel type.
- Wide range of profiles and assembly parts.
- M panels optionally with X-ray protection (Lead sheet insert / X-ray glass)
- Guaranteed resistance to positive pressure of 200Pa, suitable also for negative pressure applications. Suitable for all classes of Clean rooms.
R panels
- Panel thickness 62 mm
- Width 0,3 - 1,2m
- Height 0,3 - 4,0m
- Frame Alu section
- Core options: mineral wool, Polystyrol
- Panel surface options: steel sheet RAL 9002, stainless steel, optionally any RAL colour
- Ducts for cabling
M panels
Groove and tongue, t=60 mm (also as EI15 or X-ray)
E panels
Locked, t=60 mm
G panels
Groove and tongue, t=82 mm (EI45 – RF / EI60 – EU)
